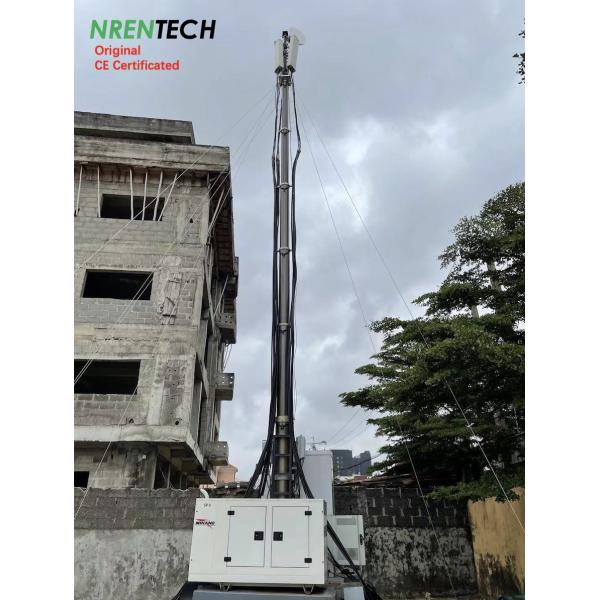

15m Pneumatic Telescoping Mast 3.3m closed height, 350kg payload

Name: 15m Pneumatic Telescoping Mast 33m closed height 350kg payload
Brand: NRENTECH
Price: 20000 USD

Quality 15m Pneumatic Telescoping Mast 3.3m closed height, 350kg payload for sale

Brand Name : NRENTECH

Model Number : NR-3.3-15-350L-7S-160-316

Certification : ISO

Place of Origin : China

MOQ : 1

Price : USD 20000 per unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200 units per month

Delivery Time : 30 working days

Packaging Details : shipping crate box 350cmL x 60cmW x 75cmH, 450kg approx.

Extended Height : 15m

Retracted Height : 3.3m

Payload : 350kg

Sections : 7sections (160mm~316mm)

Material : aluminum alloy 6063T5, hard anodizing treatment

mast weight : 320kg approx.

guying ropes : 3 layers and 4 directions

wind load : 144 kmh

working temperature : -25~65°C

Working air pressure : 0.25Mpa/36PSI

Packing : wooden box 350cmL x 60cmW x 75cmH

Shipping weight : 450kg approx.

Contact Now

15m Pneumatic Telescoping Mast 3.3m closed height, 350kg payload

15m Locking Mast-350kg Payload-3.3m Retract NR-3.3-15-350L-160-316

15m Locking Pneumatic Telescopic Mast-350kg Payload 3.3m Retracted Height

Item #: NR-3.3-15-350L-160-316
1> Extended Height: 15m
2> Retracted Height: 3.3m
3> Vertical Payloads: 350kg @ 0.25Mpa/36PSI
4> Collar Type: Lockable (automatic extension, manual operating retraction, suitable for long time deployment weekly, monthly or yearly)
5> Rated Working Air Pressure: 0.25Mpa/29PSI
6> Number of Sections: 7 pcs
7> Sections Diameter Range: 160mm~316mm
8> Material: Aluminum alloy 6063T5, hard anodizing treatment
9> Default Accessories:1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x manual operation tool, guy lines mounting plate and eyebolts.
10> Mast weight: 353kg approx.
11> Wind Load: 144 KMH
12> Working Temerature: -25°C~65°C

Optional Accessories:
1> Electric air compressor 3000W, AC220V/50hz
2> Guy lines kit: 3 layers, 4 lines each layer, 4 mounting stakes, mounting radius 15m
3> Side Mounting Bracket NR-S316, iron materials, 30kg approx.
4> Ground mounting quadpod bracket NR-QUADPOD316
5> Remote control kit
6> Manual Rotation Basement

Manufacturing Lead Time: 30 days

Shipping Lead Time(Port to Port): As arranged

Transport Packaging: Seaworthy & Airworthy Packing, Multi-layer Plywood Case (Fumigation-free).

Product Warranty: 2 years

Product data updated as of 20260531.

Product information is subject to change without notice.

15m Lockable Pneumatic Telescopic Mast-350kg Payload
NR-3.3-15-350L-7S-160-316

Extended Height	:	15	m	49.2	ft
Retracted Height	:	3.3	m	10.8	ft
Vertical Payload	:	350	kg	770	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	7
Top section diameter	:	160	mm	6.3	in
Basement section diameter	:	316	mm	12.4	in
Mast Weight	:	323	kg	710.6	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Retraction operation tool
Wind Load	:	144kmh
Optional Accessories	:	Electric air compressor			AC220V/50hz, 3000W
		Guy Rope Kits			3x4 (3 layers, 4 ropes each layer, 4 mounting stakes, mounting radius 15m)
		Side Mounting Bracket			Steel Materials, 30kg approx.
		Ground mounting Quadpod			Stainless Material
		Rotation Basement
		Remote control kit			AC220V/50Hz
data update on 20260208
